Multi-Sensor Nodes.
Our wireless multi-sensor nodes transform any facility into a reliable data source. Compact and easy to install, they measure inclinations, accelerations and temperatures, offering a clear picture of behavior over time. Thanks to the possibility of connecting external sensors, they adapt to different monitoring needs, ensuring flexibility and precision in every project.

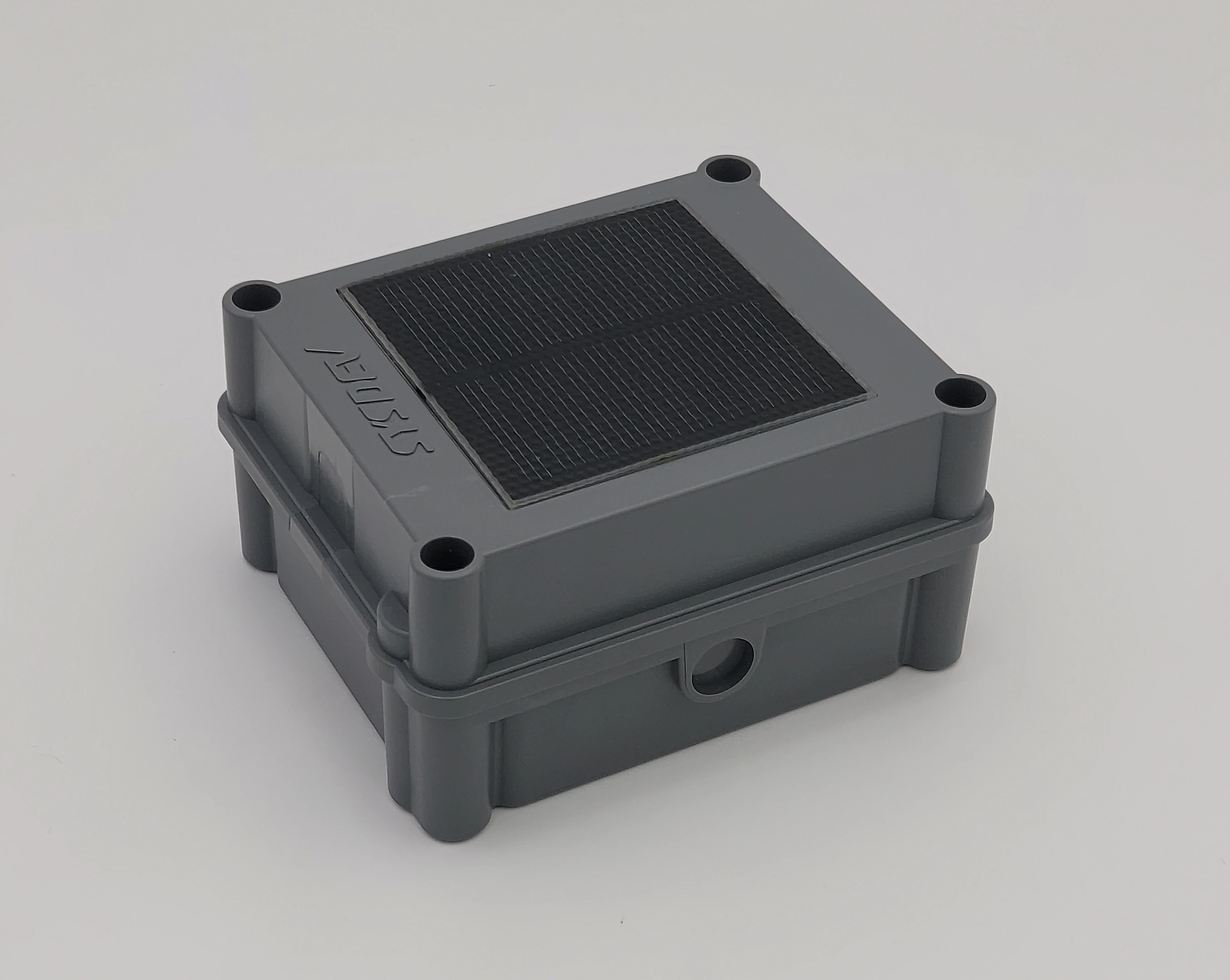

INCLINOMETER NODE
The inclinometer multi-measurement node acquires and transmits the following parameters:
- Triaxial inclination
- Temperature
- Accelerometric events

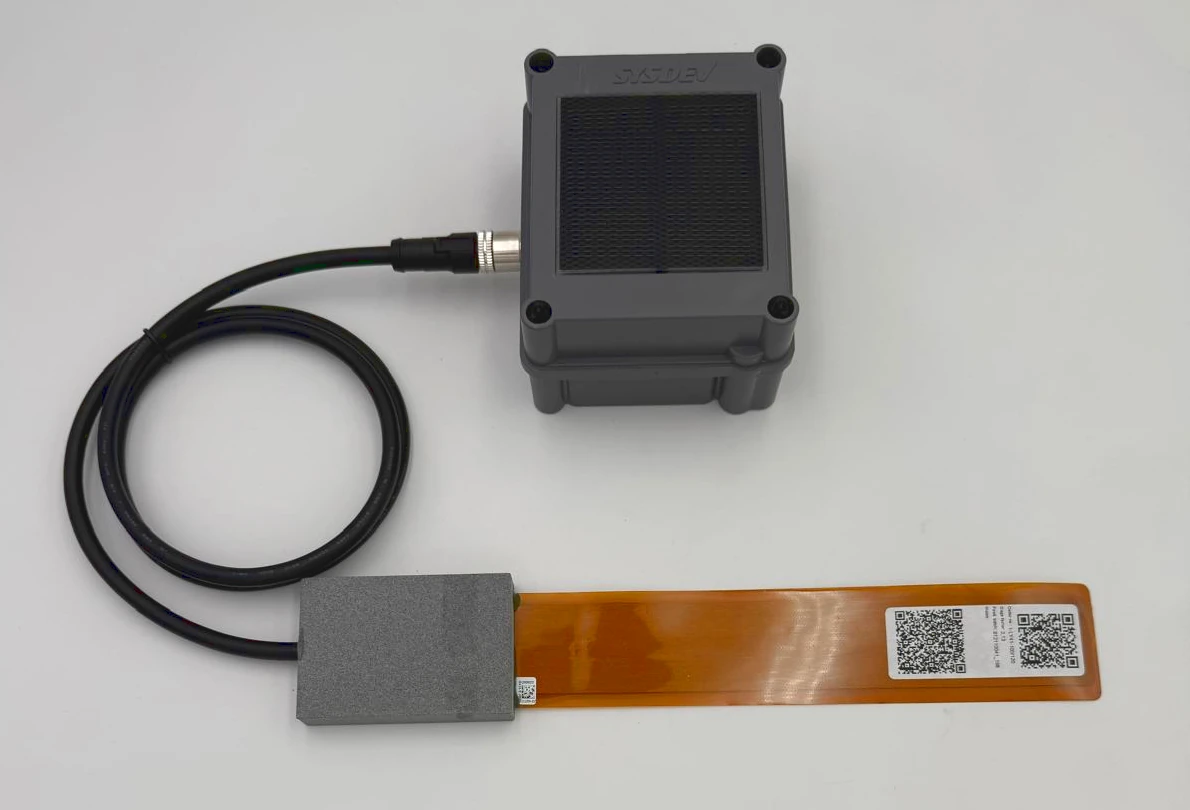

EXTENSOMETER NODE
The extensometer multi-measurement node acquires and transmits the following parameters:
- Deformation
- Triaxial inclination
- Temperature
- Accelerometric events

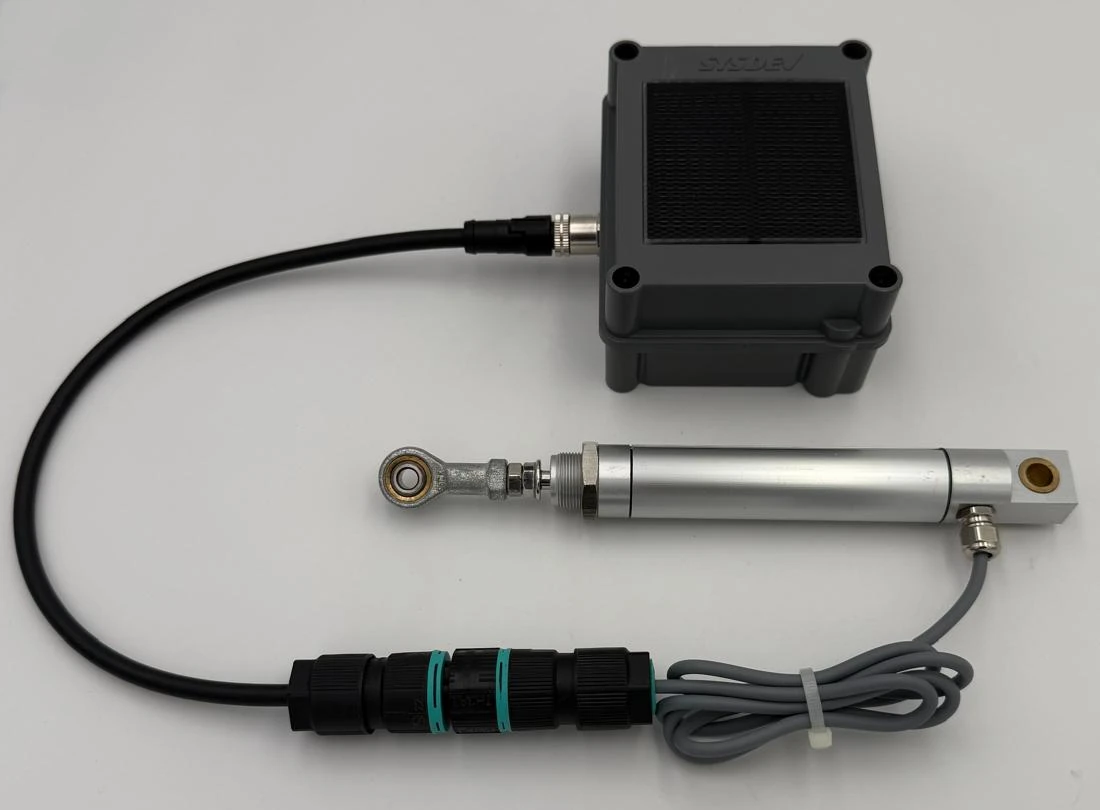

DISPLACEMENT OR CRACK NODE
The displacement multi-measurement node acquires and transmits the following parameters:
- Cracks or displacements (50mm / 100mm / 200mm / 500mm)
- Triaxial inclination
- Temperature
- Accelerometric events

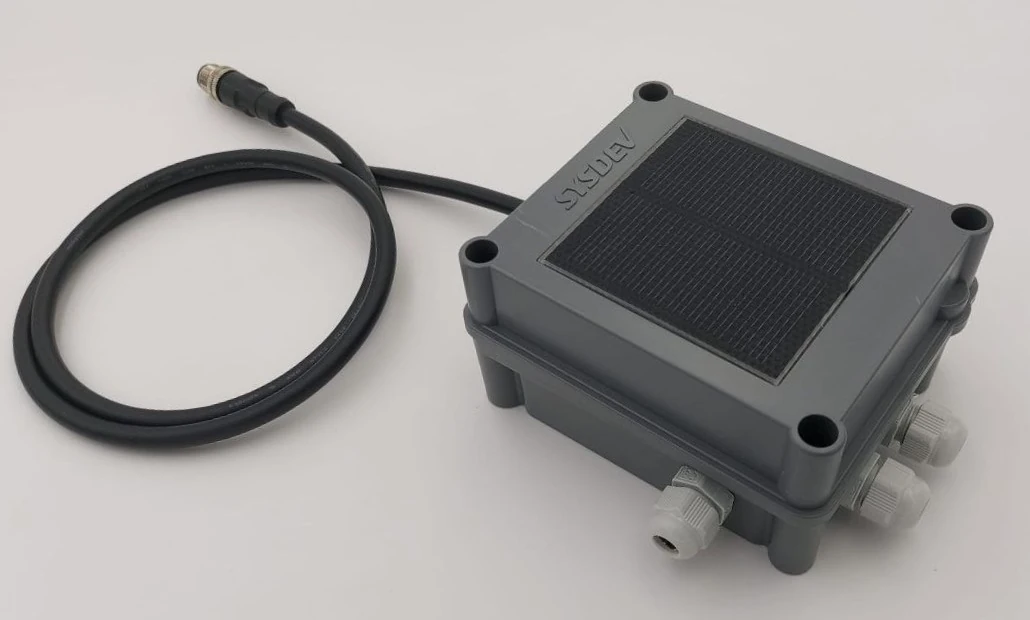

INDUSTRIAL/GEOTECHNICAL NODE
The industrial/geotechnical multi-measurement node is designed to power (5-12-24V) and acquire information from any commercial analog sensor such as Piezometers, Inclinometers, Strain gauges, Load cells, Wire extensometers, and many others.
The multi-measurement node acquires and transmits the following parameters:
- Up to three external analog inputs (0-20mA / 0-10V / Differential inputs / Resistive inputs)
- Triaxial inclination
- Temperature
- Accelerometric events
